Retail Series

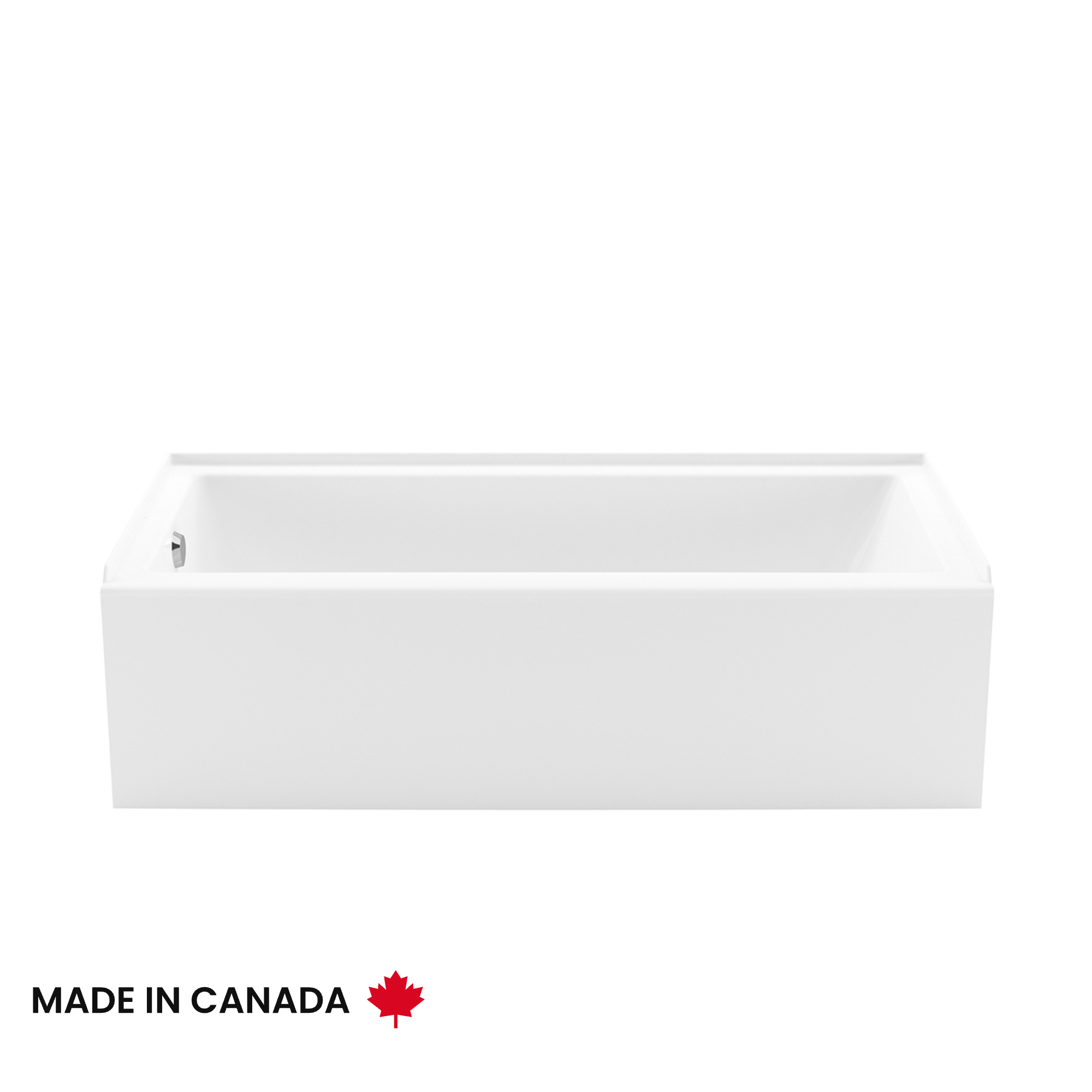

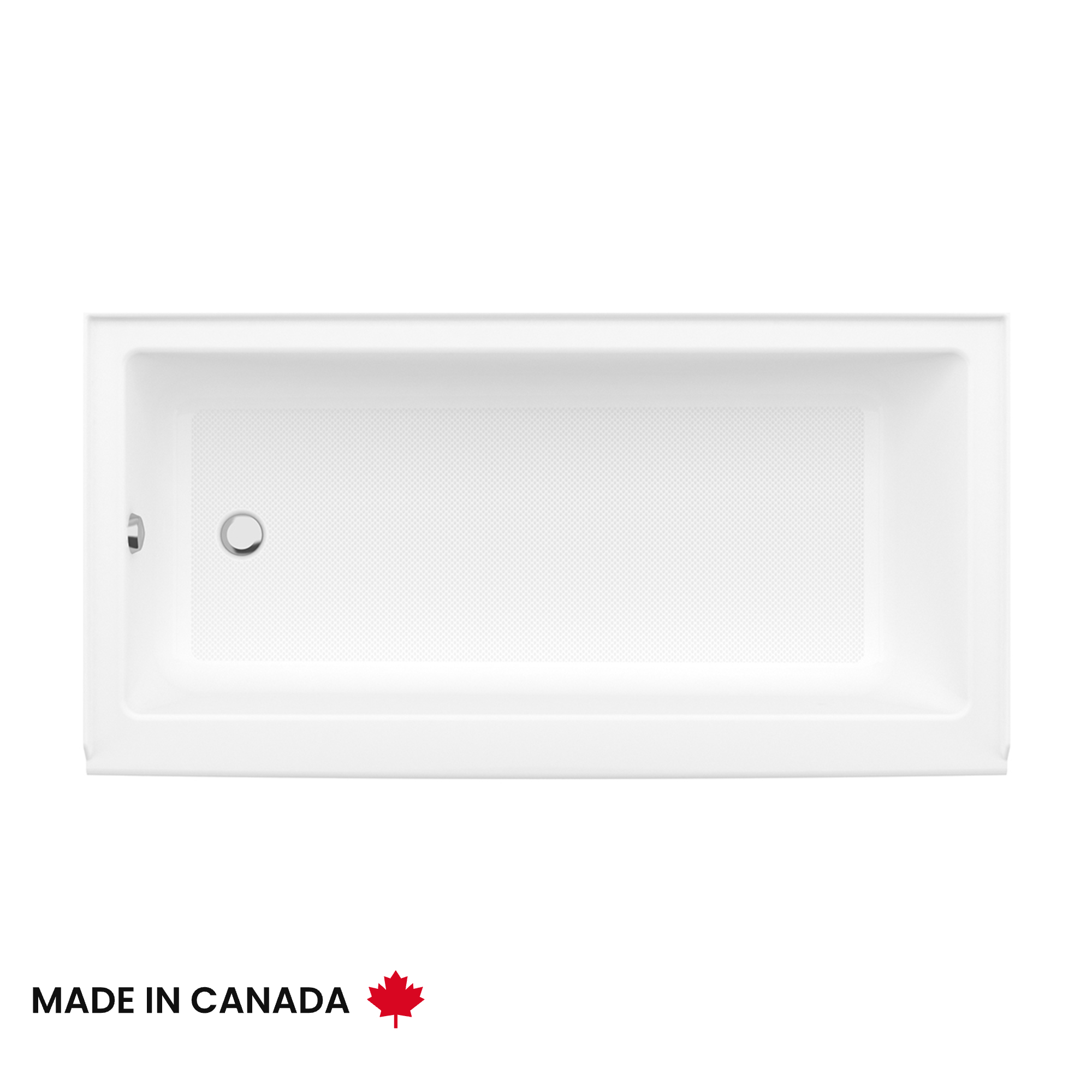

Bosca Access 6030 AFR Acrylic Alcove Left-Hand Drain Bathtub in White
59 7/8" x 30 1/8" x 16"
Internet SKU: 106968
Model number: 106968-000-001-100
Soaker - no system
A soaker bathtub without any massage system.
MSRP* CAD$ 1,208.00
Product information
Key Benefits
- Alcove installation
- Modern cubic design
- Acrylic surface resistant to stains
- Available in left-hand and right-hand drain configurations to fit your specific bathroom layout
- Anti-slip certified floor, and a low threshold to cross over for (14-in) maximum safety. Textured floor meets ADA, ANSI or CSA requirements. Compliant with accessibility codes when properly installed
- AFR unit which accommodates the installation of drain, waste and overflow above the floor
- Adds a modern look to any bathroom
- Compatible with UTile for an easy wall solution
- Maximized bathing designed for optimal comfort
Attribute Set
Characteristics
- ADA-ANSI
- Integrated Tiling Flange
- Utile Compatible
Technical Specifications

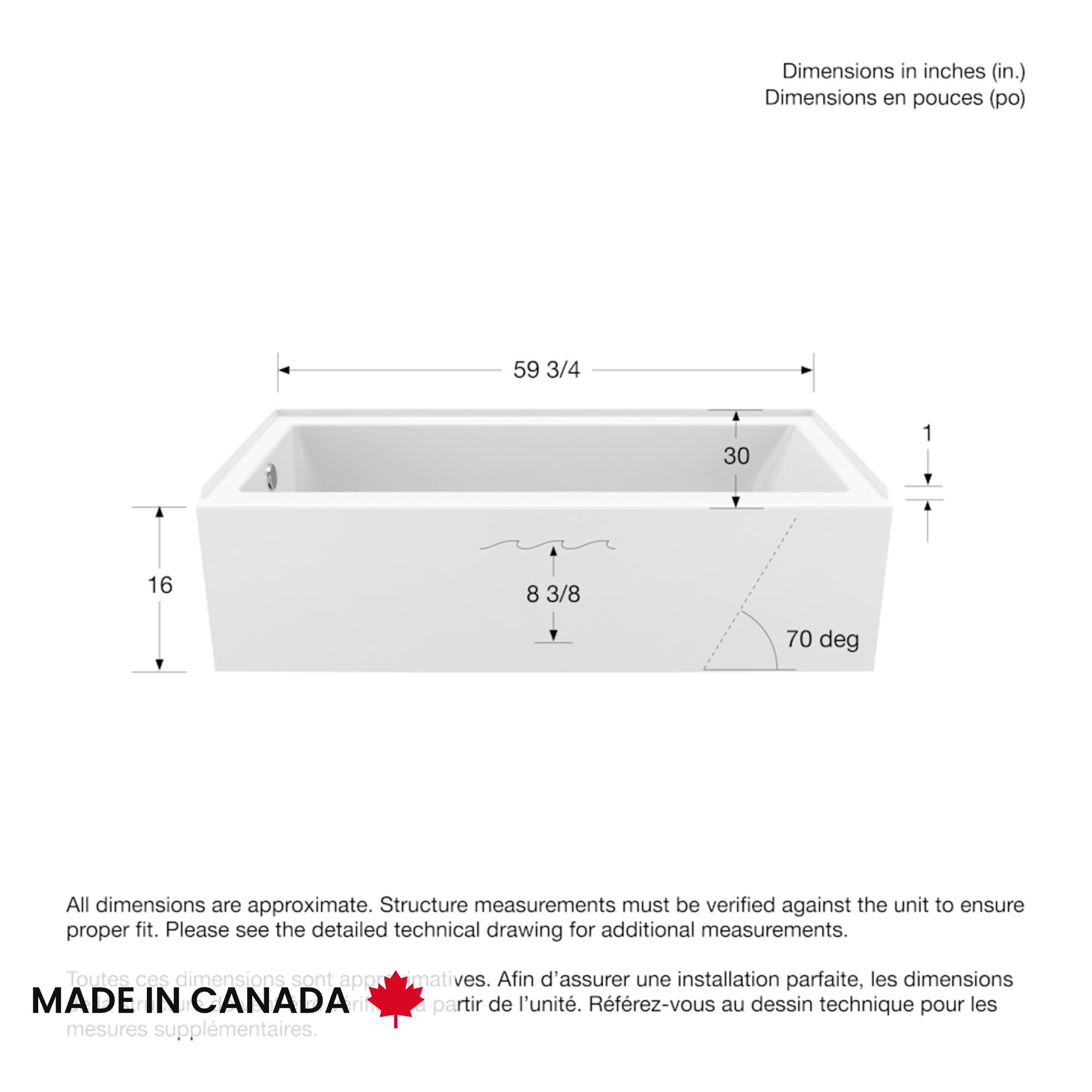

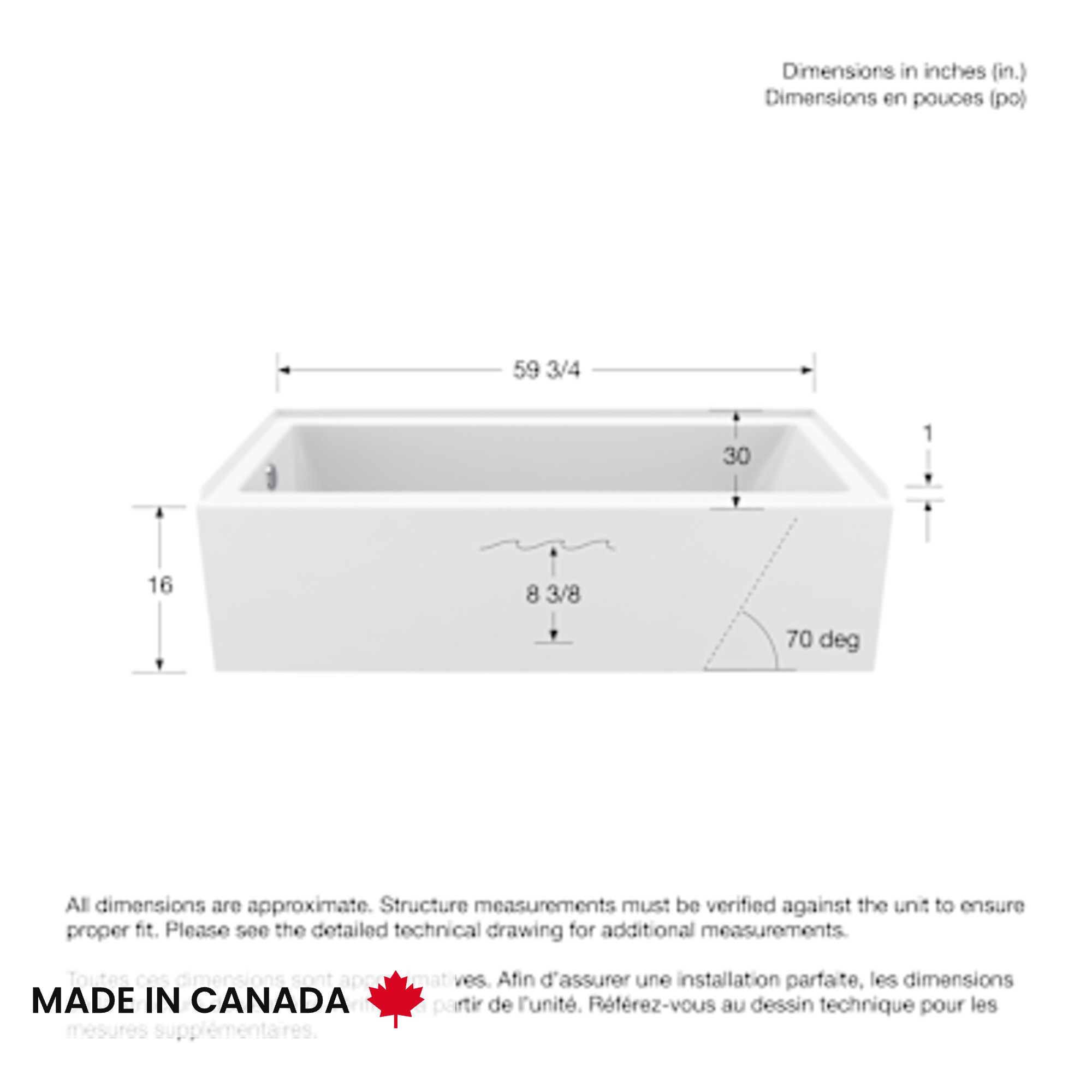

Dimensions
Deck Width
3 1/8"
Threshold Height
16"
Maximum Water Capacity
29 G
Minimum Water Capacity
28 G
Bathing Well Width
23 3/8"
Bathing Well Length
54 3/4"
Depth
13"
Deep Sump Height
10 1/2"
Height
16"
Width
30 1/8"
Length
59 7/8"
Maximum Width
58 3/8"
Approximative Weight
75 lb
Skirt Height
16"
Related Videos
Above-the-Floor Rough (AFR) for bathtubs
The unique Above-the-Floor Rough (AFR) feature for bathtubs leaves a few inches of clearance between the product’s underside and the flooring so pipes can be routed without breaking ground or relocating the drain. Perfect for installation on a concrete slab in renovation or new construction.
