Retail Series

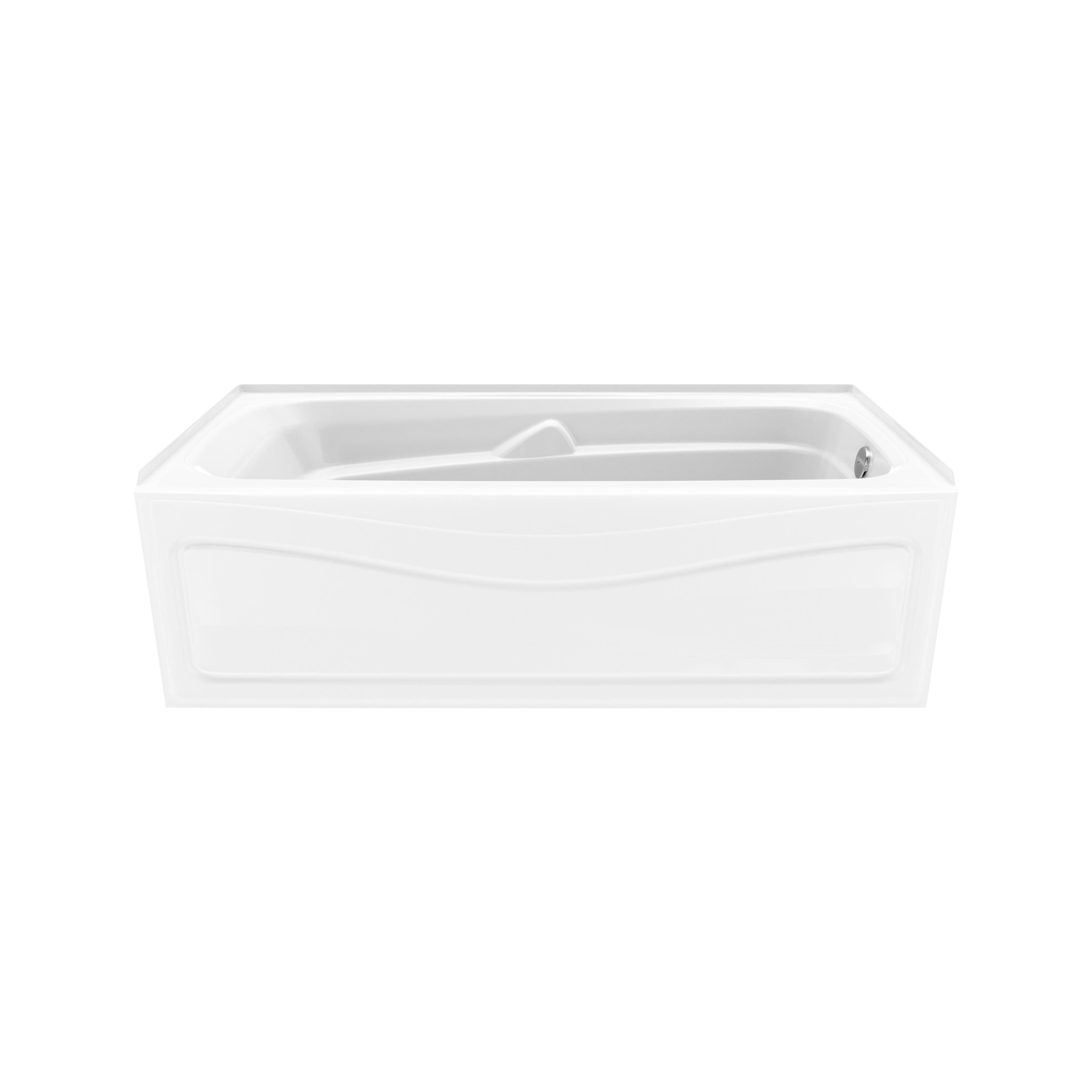

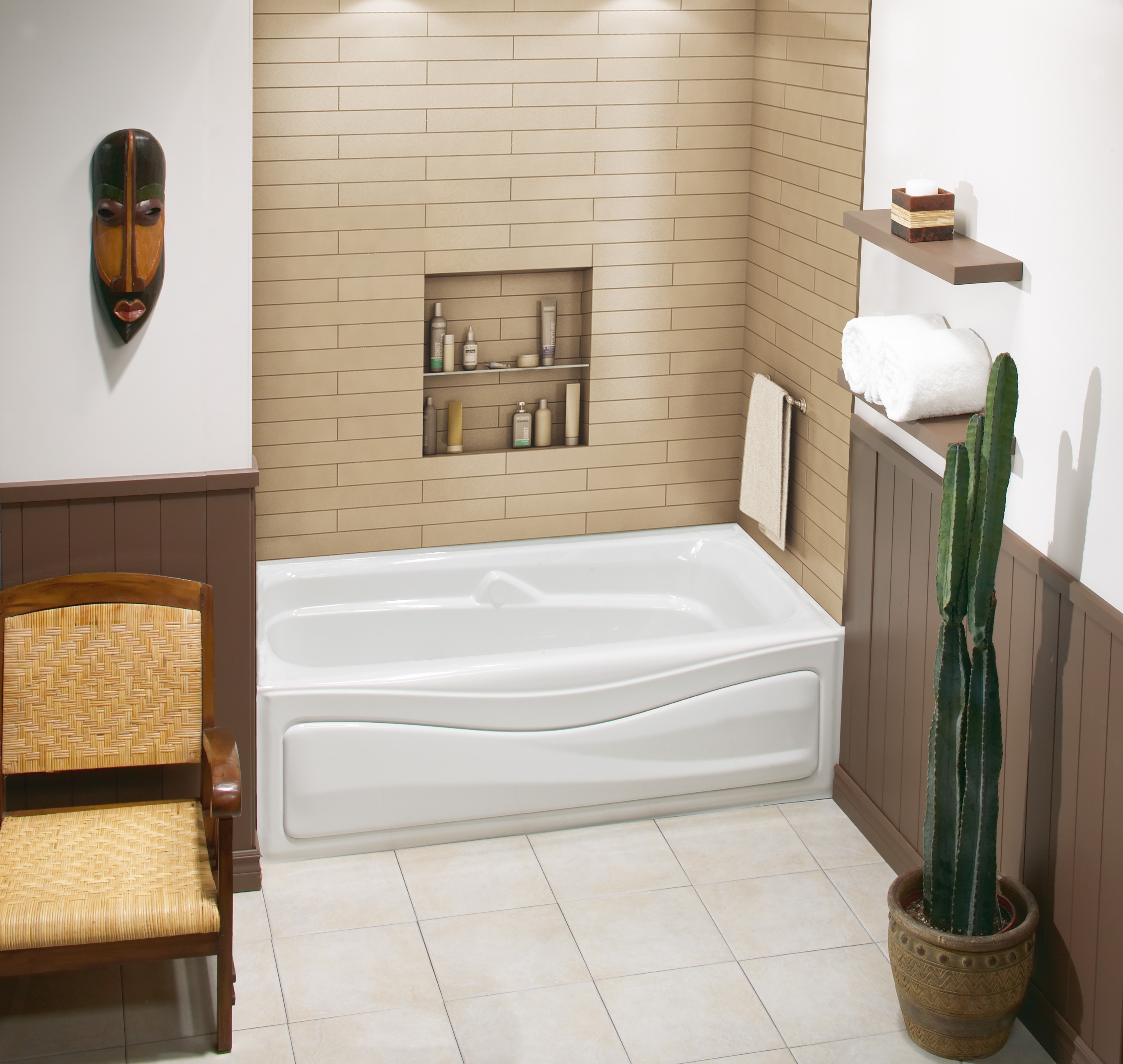

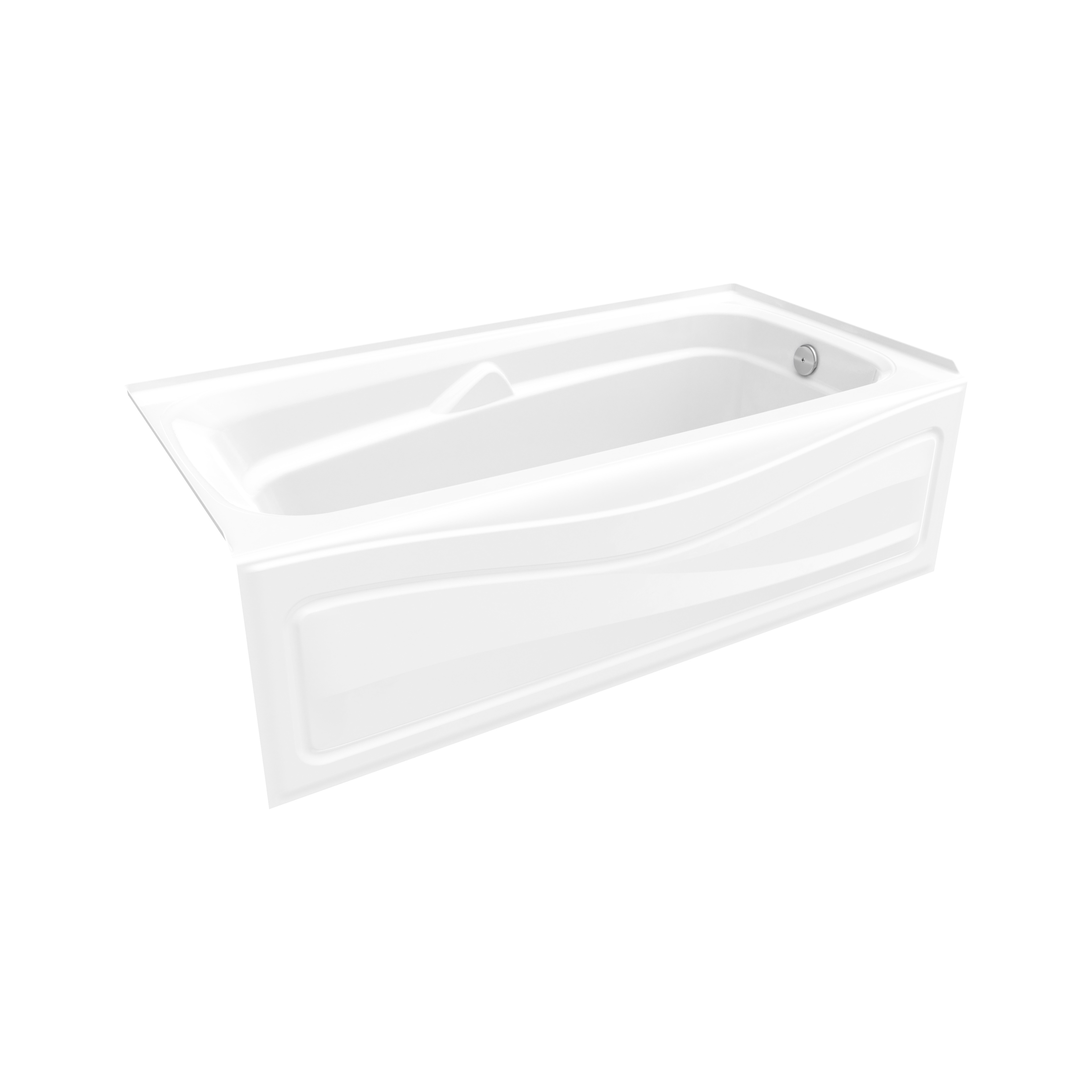

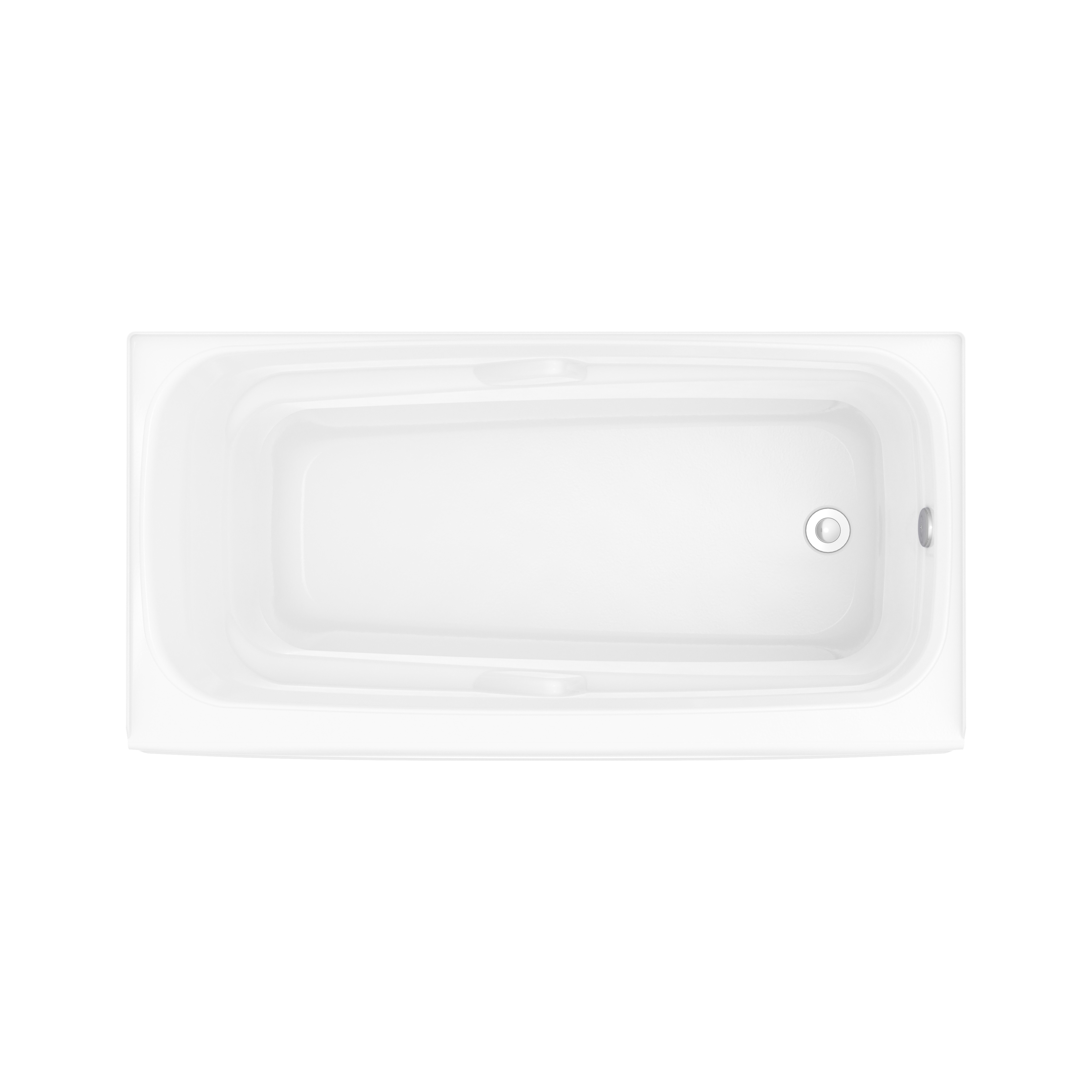

Corinthia II 60 x 30 Acrylic Alcove Left-Hand Drain Bathtub in White
59 3/4" x 29 7/8" x 21"
Internet SKU: 105684
Model number: 105684-000-001-101
Soaker - no system
A soaker bathtub without any massage system.
MSRP* CAD$ 1,118.00
Product information
Key Benefits
- Alcove Installation
- Integrated flange and apron
- 3" Above-the-Floor Rough (AFR)
- Textured bottom
- Available in right-end or left-end drain configuration
Attribute Set
Characteristics
- Integrated Tiling Flange and Skirt
- Integrated Armrest
Technical Specifications
Dimensions
Deck Width
3"
Maximum Door Width
58 1/4"
Maximum Water Capacity
39 G
Minimum Water Capacity
39 G
Bathing Well Width
19 1/2"
Bathing Well Length
48 1/4"
Deep Sump Height
16 1/2"
Height
21"
Width
29 7/8"
Length
59 3/4"
Approximative Weight
80 lb
Related Videos
Above-the-Floor Rough (AFR) for bathtubs
The unique Above-the-Floor Rough (AFR) feature for bathtubs leaves a few inches of clearance between the product’s underside and the flooring so pipes can be routed without breaking ground or relocating the drain. Perfect for installation on a concrete slab in renovation or new construction.
